What are the characteristics, uses, and definitions of a diode?
Diodes are a crucial component of electronics that serve a variety of purposes in circuits by preferentially conducting electricity in one direction. This blog entry examines diodes, including their uses and more.
Describe a diode. One would be known to anybody studying or working with electronics. Diodes are employed in many modern electronics, making them a rather ubiquitous electrical component. In this article, we’ll examine in-depth what diodes are, their primary purposes, many varieties, and important applications.
Describe the diode.
A diode is a two-terminal electrical component with the feature of mostly conducting current in one direction; this characteristic is known as asymmetric conductance. The thermionic diode, also known as a diode vacuum tube, is a vacuum tube that has two electrodes: a heated cathode and a plate. Electrons can only flow through this tube in one way, from cathode to plate. A diode hence essentially has high resistance in one direction and low resistance (usually zero) in the other. As a result, they are used to restrict voltage to safeguard circuits and to convert Alternating Current (AC) into Direct Current (DC) Rectifiers.
Asymmetric electrical conduction across the contact between a crystalline mineral and a metal was discovered by German scientist Ferdinand Braun in 1874; semiconductor diodes were the first semiconductor electronic devices. The semiconductor diode is the kind of diode that is used most often nowadays. It is made of crystalline semiconductor material, usually silicon and germanium, and has two electrical terminals linked to a P-N junction. Since silicon crystals are resistant to damage from excessive heat, silicon diodes are more widely used than their germanium counterparts. Diodes may sometimes be made from other semiconducting semiconductors, such as gallium arsenide. How the current is transferred differs, although it flows in the same direction in all of them.

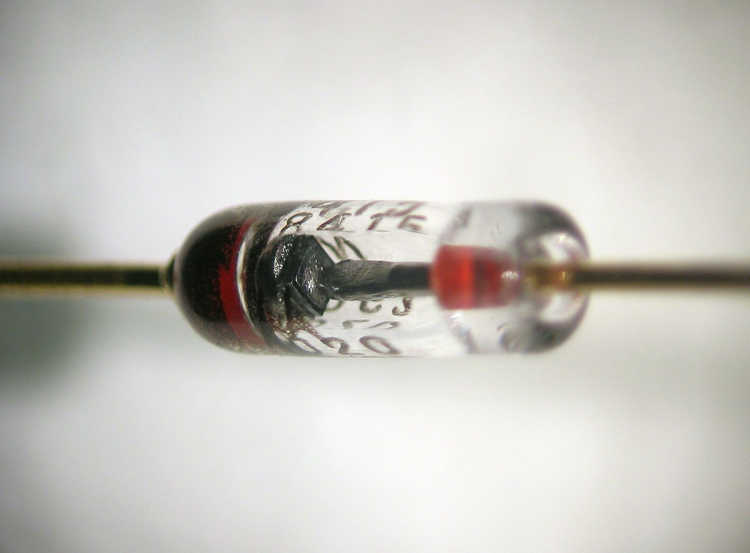

Anode and cathode are the names of the two terminals of a diode. Referring to the lead picture at the top of the blog, the arrowhead in a circuit diagram denotes the anode, while the cathode makes up the opposite end.
A diode is said to have a forward bias when the anode voltage is higher than the cathode voltage and conducts with a comparatively low voltage drop. Similar to this, a diode is said to have a reverse bias when the cathode voltage is higher than the anode. The direction of typical current flow is shown by the arrow in the diode symbol.
Diode’s Principal Functions
A diode’s most frequent use is to let electric current pass in one way (known as the diode’s forward direction) while obstructing the opposite or opposing direction (aka the reverse). In a sense, the diode is an electronic equivalent of the check valve, and the process of converting AC to DC is called rectification because of its unidirectional characteristic. To extract modulation from radio signals in radio receivers, for example, diodes may be employed; more on this in a later section.
It’s also crucial to keep in mind that diodes are fully capable of displaying more complex behavior beyond a basic on-off owing to their nonlinear current-voltage properties. For instance, semiconductor diodes can only transfer electricity when a certain level of forward voltage is present. When used as a temperature sensor or as a voltage reference, the voltage drop across a forward-biased diode varies very little with current and is a function of temperature.
Furthermore, when the reverse voltage across a diode approaches the breakdown voltage value, its strong resistance to reverse current might abruptly decrease. Intriguingly, it is possible to alter the current-voltage characteristic of semiconductor diodes by selecting different semiconductor materials and adding doping impurities to the materials during manufacturing. Such techniques are used to create special-purpose diodes that perform a variety of tasks, including producing light, electronically tuning radio and TV receivers, generating radio-frequency oscillations, and shielding circuits from high-voltage surges.
Variety of Diodes
We will examine the different diode kinds in this section.
Diode Luminescent (LED)
As their name indicates, Light Emitting Diodes (LEDs) are diodes that illuminate when the current flowing between the electrodes passes through them. The light emitted by many diodes is not visible because their frequency levels do not allow for viewing. LEDs come in a variety of hues, and the color of the light depends on the LED’s semiconductor’s energy gap.
Led laser
Coherent light is produced by laser diodes. These diodes are widely used in CD drives, DVD players, and laser equipment. They are pricey when compared to LEDs and inexpensive when compared to other laser generators. They do not, however, live long and have short lifespans.
Snowfall Diode
It is a reverse bias type diode that utilizes the avalanche phenomenon to function. Avalanche breakdown occurs when a voltage drop is unaffected by current and stays constant. These diodes are excellent for photodetection because of their great sensitivity.
Diode Zener
It provides a constant reference voltage, making it a particularly practical kind of diode. When a certain voltage is reached, they operate in reverse bias and fail, but when the current flowing through the resistor is constrained, a steady voltage is generated. To give a reference voltage, Zener diodes are mostly used in power supply.
Diode Scotty
Scotty diodes, which are mostly used in rectifier applications, have a lower forward voltage (between 0.15 and 0.4 volts) than other silicon PN junction diodes.
Functions by defending the solar cells against a circumstance like that.
In voltage multiplier circuits, diodes
Usually, voltage multiplier circuits have two or more diode rectifier circuits. Different sorts of multiplier circuits, such as voltage doubles, triplets, quadruplets, etc. Diodes and capacitors work together to produce an output voltage that is odd or even multiple of the input peak voltage.
Diodes for preventing voltage spikes
Due to the magnetic field energy that has been stored in an inductor, the abrupt withdrawal of a supply source causes a greater voltage to be produced. The remainder of the circuit may suffer harm as a result of this sudden voltage increase. Large voltage spikes must be controlled to prevent this, therefore a diode is connected across the inductor or other inductive loads. In various electronic parts, these diodes are referred to as snubber diodes, fly-back diodes, suppression diodes, freewheeling diodes, and others.
