TOF-SIMS [Time-of-Flight Secondary Ion Mass Spectrometry] analysis is a complex surface analytical technique used to characterize materials’ composition, structure, and chemistry at the molecular level.
It offers depth profiling and high-resolution chemical imaging by fusing the concepts of time-of-flight mass spectrometry with secondary ion mass spectrometry (SIMS). In this comprehensive guide, we discuss everything you need to know about TOF-SIMS analysis to understand this analytical technique in depth. Let’s get started!
Principles of TOF-SIMS analysis
As already explained, TOF-SIMS analysis involves characterizing materials’ surface composition and structure at a molecular level. Here are the principles of TOF-SIMS analysis:
Ionization: The first step in TOF-SIMS analysis is to blast the sample surface with a primary ion beam. Due to this ionization process, the sample’s surface experiences the ejection of secondary ions.
Mass separation: The secondary ions’ mass-to-charge ratio (m/z) is then used to sort them after they have been accelerated into a mass spectrometer. A time-of-flight analyzer (TOF-SIMS) finds the time it takes for ions with various masses to traverse a given distance and is used to separate the ions.
Detection: After the secondary ions are found, a detector system logs their arrival timings and creates a mass spectrum showing ion distribution according to mass-to-charge ratios.
Chemical imaging

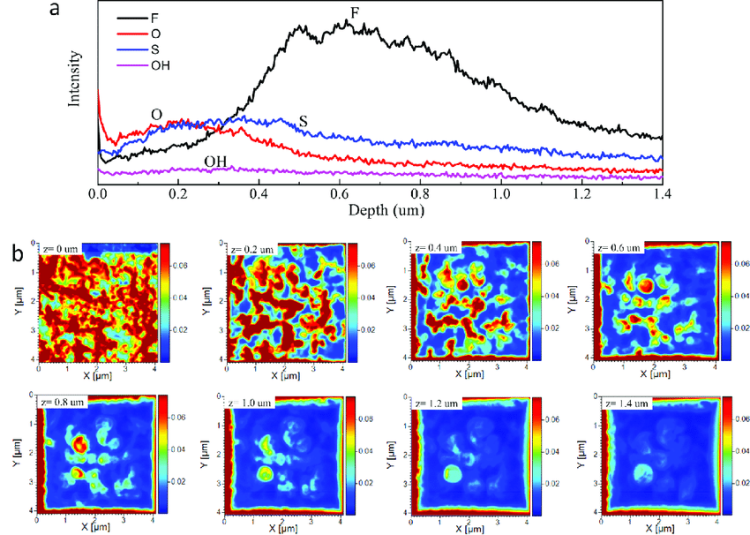

With the aid of TOF-SIMS, comprehensive chemical maps of the sample surface may be created, displaying the spatial distribution of various elements, molecules, and molecular fragments. This enables the correlation of chemical composition with surface topography, the visualization of surface heterogeneity, and the identification of chemical species.
With the sub-micrometer spatial resolution provided by TOF-SIMS, scientists can examine features as small as a few nanometers. TOF-SIMS is the perfect tool for researching complicated surfaces, thin films, interfaces, and biomaterials with intricate structures because of its excellent resolution.
TOF-SIMS application
Material science: TOF-SIMS is used in material science research to study the surface chemistry, composition, and structure of various materials, including metals, semiconductors, polymers, ceramics, and biomaterials.
Biomedical research: In biomedical research, TOF-SIMS is useful for examining biological tissues, cells, and biomaterials. It can illuminate cellular and subcellular metabolic processes, molecular distributions, and disease mechanisms.
Microelectronics: TOF-SIMS is used in the microelectronics sector for thin film coatings, integrated circuits, semiconductor device quality control, failure analysis, and process optimization.
Environmental science: In ecological science, TOF-SIMS analyzes environmental materials, including contaminants, water, soil, and air particles. It can recognize trace elements, isotopic signals, and organic and inorganic chemicals essential for pollution control and environmental monitoring.
TOF-SIMS advantages
A wide variety of materials and sample types can be analyzed with TOF-SIMS due to its high sensitivity and spatial resolution. Qualitative and quantitative analysis can be performed using TOF-SIMS, offering comprehensive chemical information with little sample preparation.
TOF-SIMS limitations
TOF-SIMS analysis is limited in certain elements and molecular species due to poor detection sensitivity, sample damage from the primary ion beam, and surface charging effects. Furthermore, surface analysis techniques and mass spectrometry expertise are needed to interpret TOF-SIMS data.
Final thoughts
TOF-SIMS is a versatile analytical technique with unique capabilities for molecular depth profiling, chemical imaging, and surface analysis of materials. For researchers and engineers looking to assess and control the properties of materials for a range of industrial and scientific applications, TOF-SIMS’s high sensitivity, spatial resolution, and depth profiling capabilities make it an invaluable tool.
